Series special characteristics
The KOS series, which bears the KING OF STRIPPING MACHINE, is the most standard general-purpose stripping machine for electric power CABLES. Combination of a single-line slitter unit and a multi-core wire sheath turbo unit. In addition to the popular all-purpose MT type, the PT type dedicated to thick lines, and custom-designed specifications are also supported. After six generations of improvement, it has a safe design that considers not only stripping ability but also operability that can be used by anyone, high work efficiency, and safety. This is the standard for the scrap industry, the KOS series of Sanritsu Machinery.

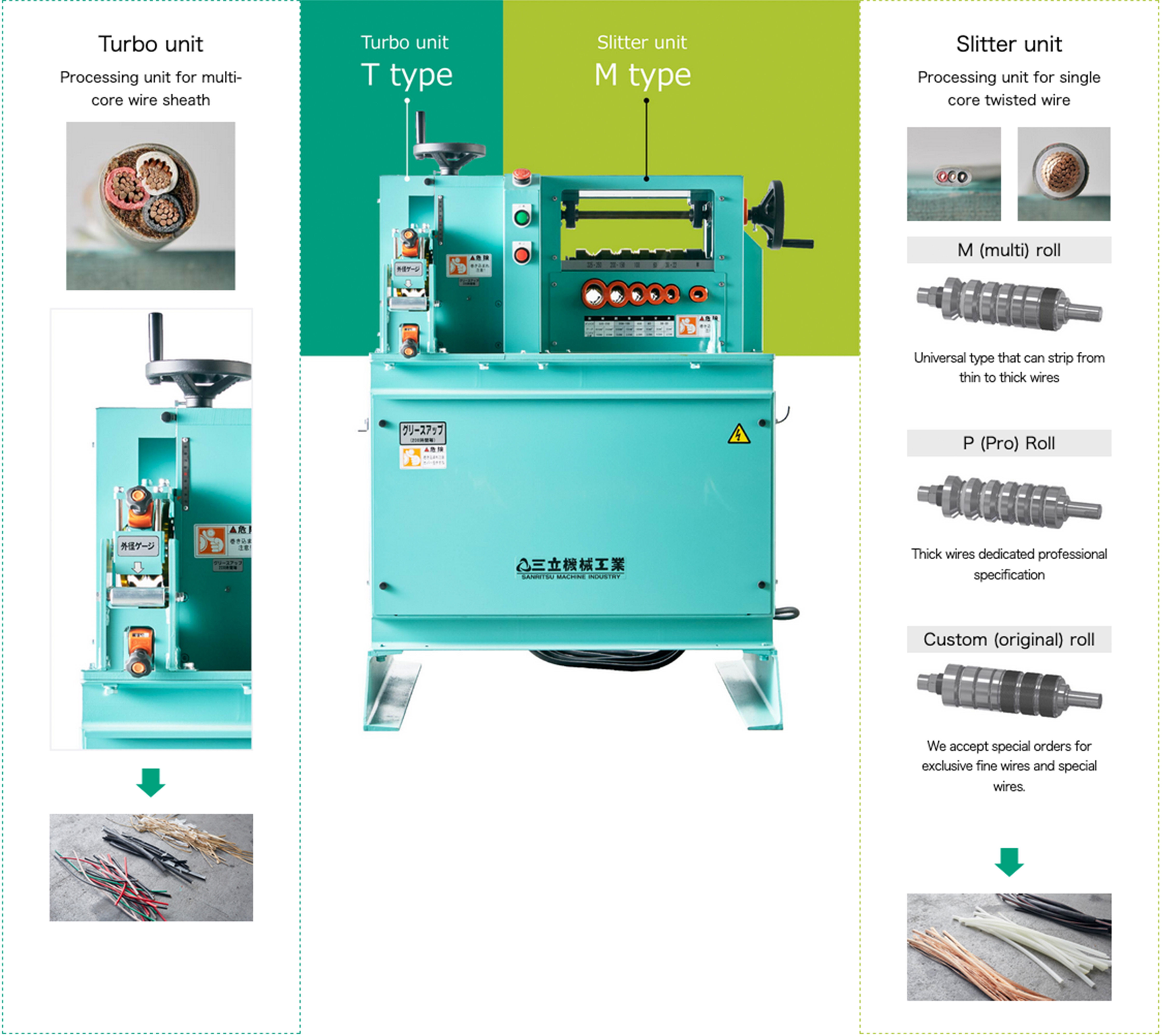

Processing unit for multi-core wire sheath
Processing unit for single core twisted wire
Universal type that can strip from thin to thick wires
Thick wires dedicated professional specification
We accept special orders for exclusive fine wires and special wires.

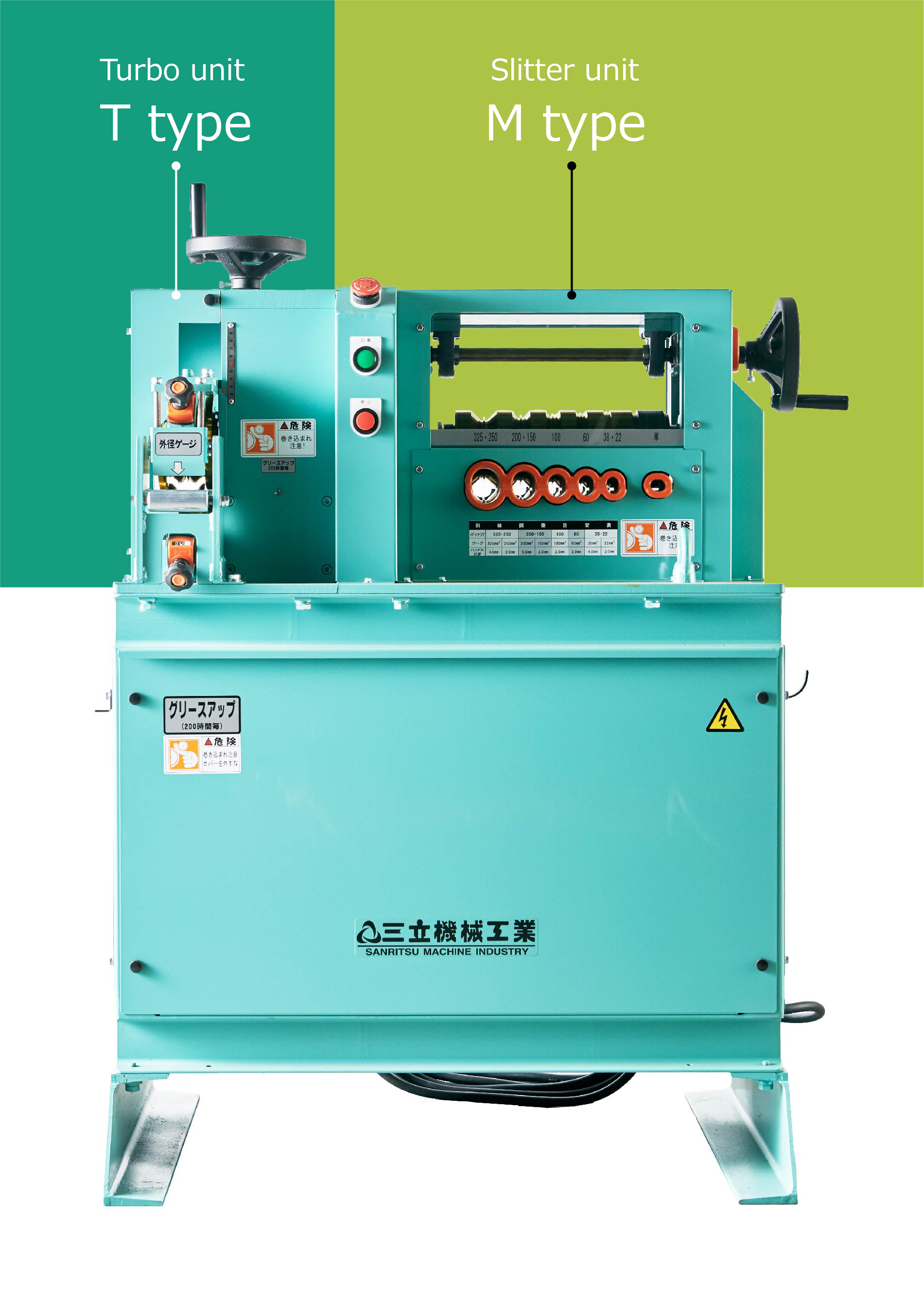

By combining M (multi) roll unit and T turbo unit, it becomes MT type.
By combining the P (Pro) roll unit and the T turbo unit, it becomes PT type, however it can be freely combined with the PT type.
M roll and T turbo unit alone are also available.
| Single wire | Twisted wire | Multi-core wire | ||
|---|---|---|---|---|
 |
 |
 |
 |
|
| Wire type | VVF | CV、IV | CV、IV | VVR(SV) |
| size | 1.6/2.0/2.6mm² | 22~38mm² | 60~325mm² | 3cores 22~325mm² |
| processing outer diameter | ~10mm | 8.4~13mm | 13~35mm | 20~80mm |
| KOS-MT type | ○ | ○ | ○ | ○ |
| KOS-M type | ○ | ○ | ○ | |
| KOS-PT type | ○ | ○ | ||
| KOS-P type | ○ | |||
| KOS-T type | ○ | |||
Supports a wide range of general wire sizes (from 22 to 325 squares). This is a universal stripping machine that can process F cables, multi-core wires, high-voltage wires, etc. It is a representative model boasting the industry's No. 1 sales volume recommended for all metal recyclers
Easy to move by installing casters
Increases work efficiency because stripped wires don’t fall on the floor
Roll for exclusive use of thick high-voltage wire, can be replaced with a normal crown roll depending on the application
The wire can be rotated in the reverse direction by inching to take out the electric wire easily
Please feel free to contact us for other options and other specifications.
| KOS-MT type | |
|---|---|
| Weight | About 380kg |
| Power | 3-phase 200V 2.2lw |
| Size | 700L × 995W × 1380H |
| Processing speed | Slitter unit 28m / min (Turbo unit 18.4m / min) |
| Processing hole | 6 holes (single wire × 1, twist × 5) |
| Applicable Outer diameter | Single wire Φ ~ 10 Twist wire Φ8.4 ~ 35 Multi-core wire Φ20 ~ 80 |
| Target size | 22～325Square |
| Processing power | 25～500kg/H |
