Features
This is a simple type of stripping machine series that is ideal for users who want to introduce stripping work easily and inexpensively, users such as 「 doesn’t have much volume and wants to process in-house」. All models can be used with a 100V power supply, and a lineup of all three models, compact DE and DW types that can be operated on a desk, and stationary type SL models.

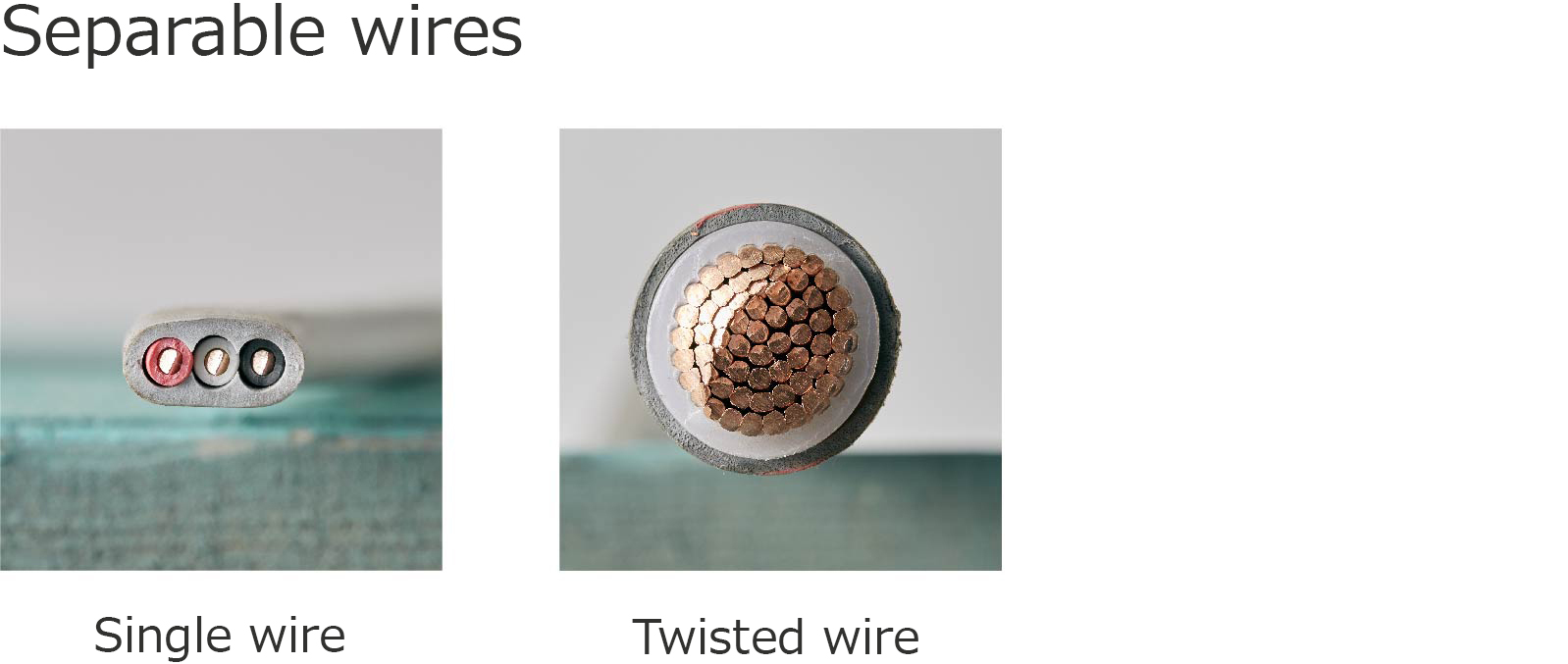

With a small body that can be placed on a desktop and the convenience of a 100V power supply, it can be used anywhere regardless of location. The D-E type is recommended for electricians because it is intended for slightly thick single-core twisted wires and F cables. The scale is easy to adjust, the safety is not compromised, and anyone can use it with confidence.
| D-E type | |
| Size | 312L×494W×456H |
| Weight | 50kg |
| Power | Single phase 100V 0.4kw |
| Processing speed | 13.6ｍ/min |
| Processing hole | 4 holes (single wire x 1, twisted wire x 3) |
| Applicable outer diameter | Single wire Φ ～ 2 Twisted wire Φ6.8 ～ 22 |
| Target size | 14-150 Square |

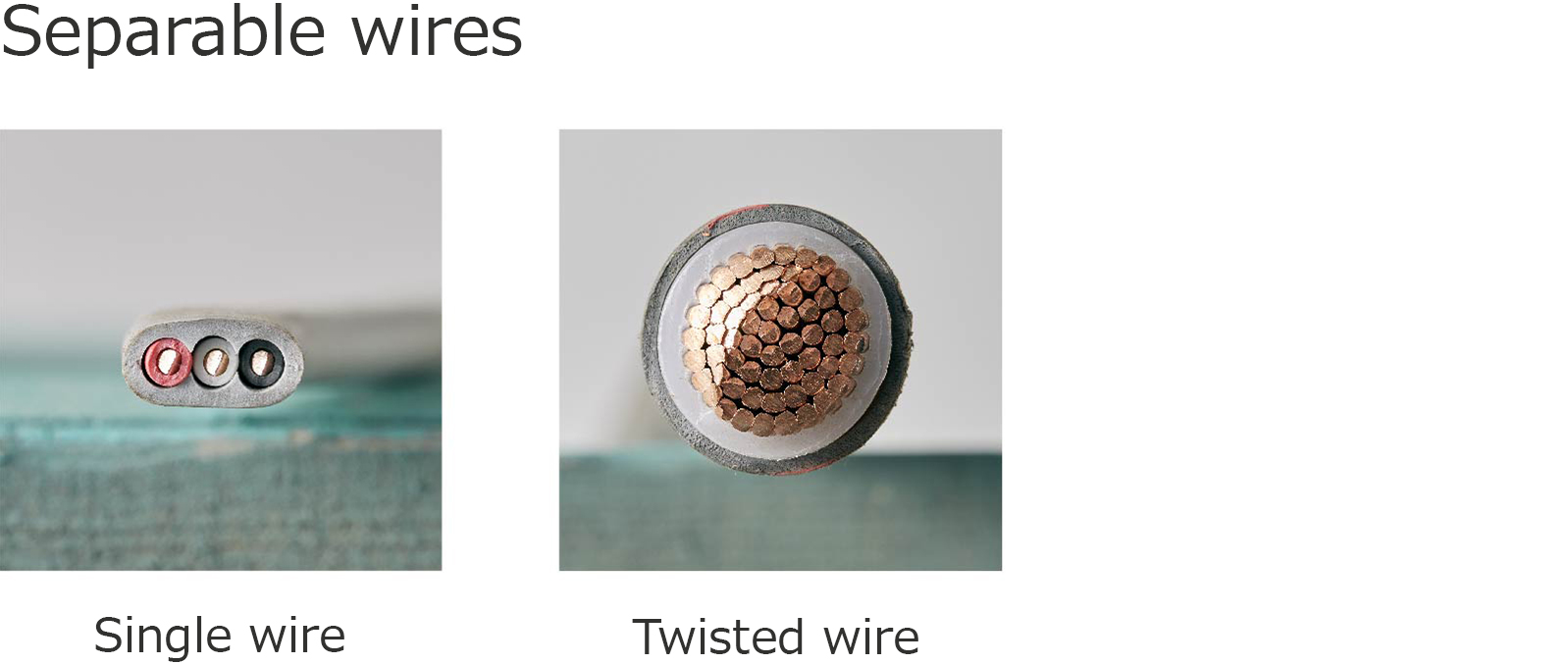

With a small body that can be placed on a desktop and the convenience of a 100V power supply, it can be used anywhere regardless of location. D-W type is recommended for welfare work centers because it is intended for extra-fine twisted wire and F cable. The scale is easy to adjust, the safety is not compromised, and anyone can use it with confidence.
| D-W type | |
| Size | 312L×494W×456H |
| Weight | 50kg |
| Power | Single phase 100V 0.4kw |
| Processing speed | 13.6ｍ/min |
| Processing hole | 4 holes (single wire x 1, twisted wire x 3) |
| Applicable outer diameter | Single wire Φ ～ 2 Twisted wire Φ6.8 ～ 22 |
| Target size | 1.25～22 Square |

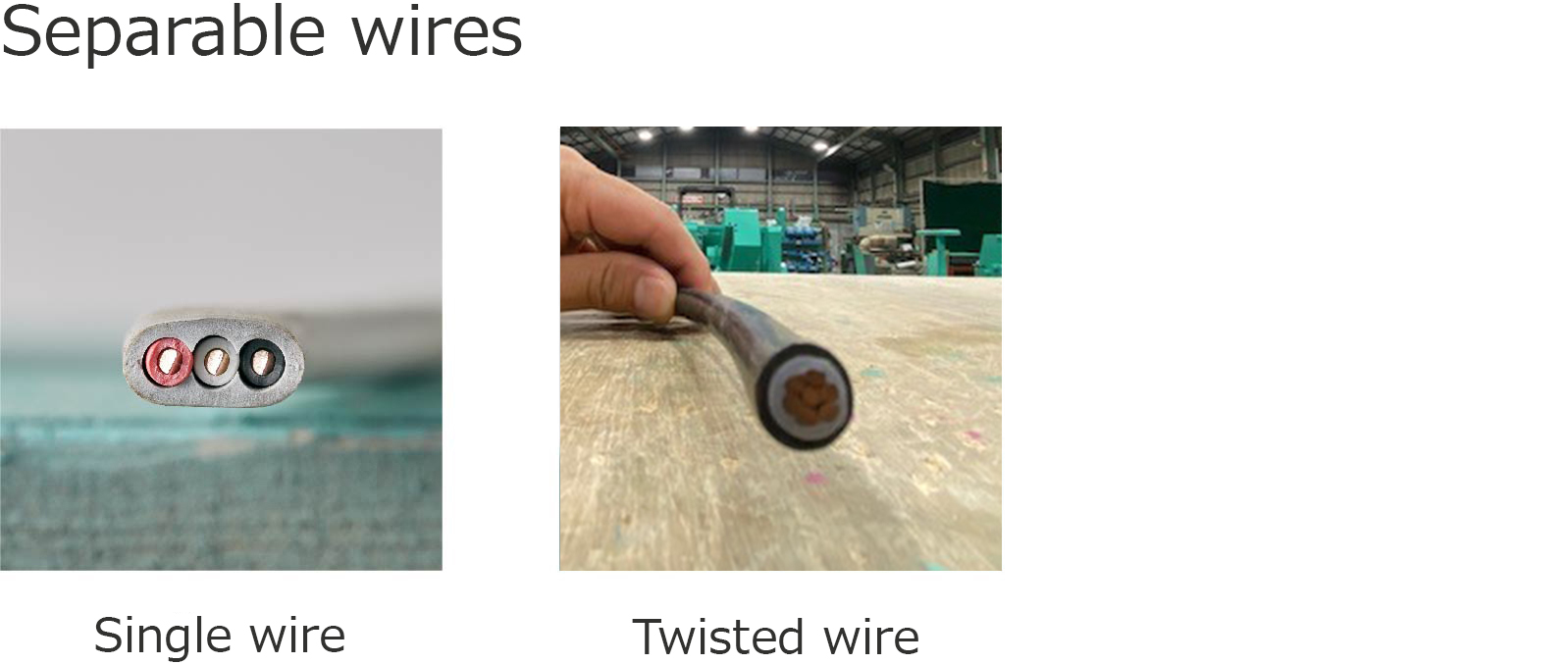

A stationary model with a track record of more than 30 years for the simple model of the 100V specification. The target size is 1-core twisted wire outer diameter of 5 to 35 mm, F cable processing is also possible, and the motor is equipped with 100 V maximum 0.75kw, and it can correspond to the widest range in the series. It is recommended to the users who want to strip a wide range of wires, however there is no 200V power supply at the installation location and processing volume is low.
| S-L type | |
| Size | 650L×560W×1200H |
| Weight | About 150kg |
| Power | Single phase 100V 0.75kw |
| Processing speed | 24ｍ/min |
| Processing hole | 6 holes (single wire x 1, twisted wire x 5) |
| Applicable outer diameter | Single wire Φ ～ 5 Twisted wire Φ5 ～ 35 |
| Target size | 8～325 Square |
